Hwy 75

Hallock

study area map

About

This is a complex project that requires a redesign of the roadway layout to fix the current sidewalk issues. This is how the road layout design will will look. There are four different breakouts because each segment requires a different type of fix.

You can also view the zoomed-in layouts by scrolling past this infographic.

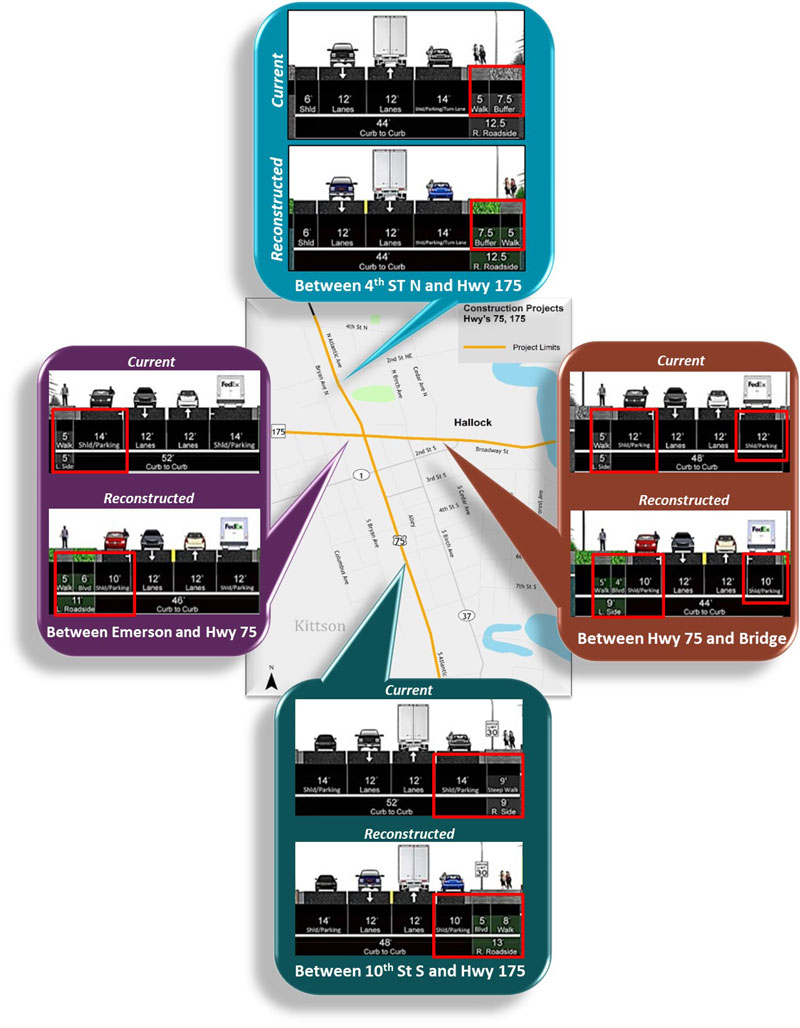

Four layouts for Broadway Street to 10th Street South on Highway 75

This infographic shows the layout differences for each highway section in Hallock


Hwy 75

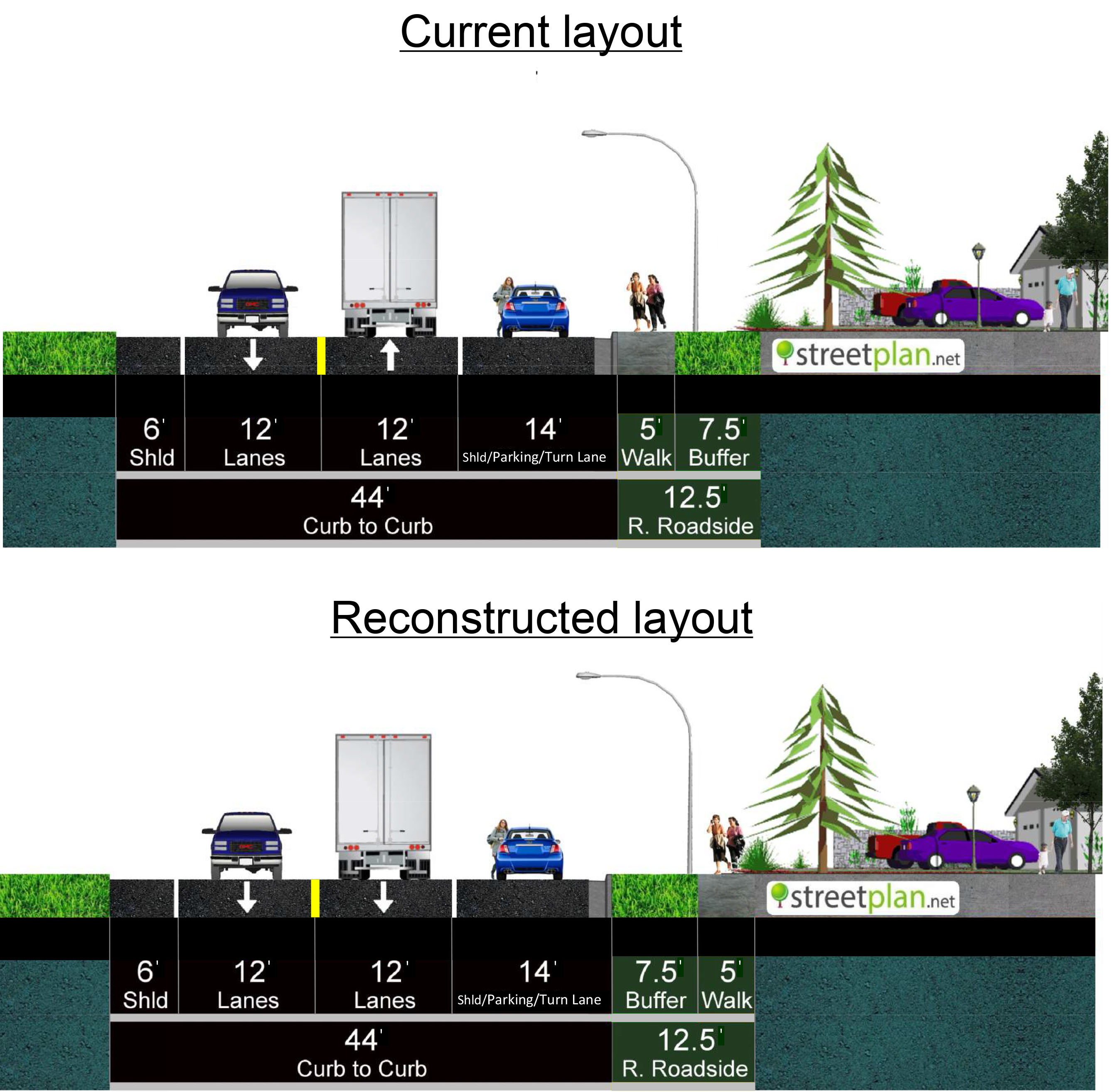

Fourth Street North to Broadway Street (Hwy 175)

This layout only changes by switching the boulevard and the sidewalk along the northbound lane, there is no curb shift.

Layout for 4th Street North to Broadway Street on Highway 75

Fourth Street North to Broadway Street (Hwy 175) layout

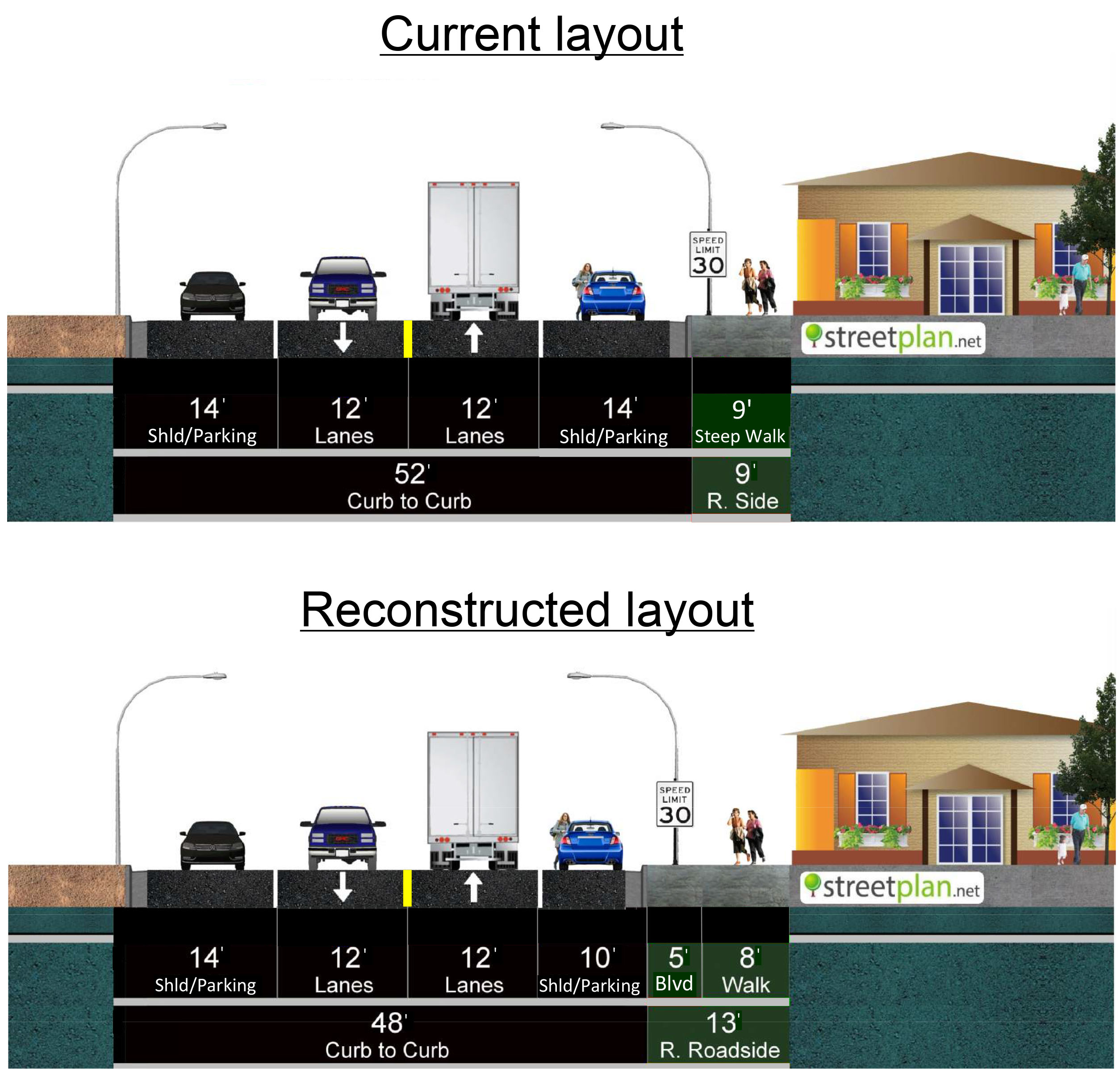

Broadway Street (Hwy 175) to 10th Street South

This layout changes by replacing 4 feet of the paved shoulder on the northbound lane with concrete sidewalk.

Layout for Broadway Street to 10th Street South on Highway 75

Broadway Street (Highway 175) to 10th St S layout


Hwy 175

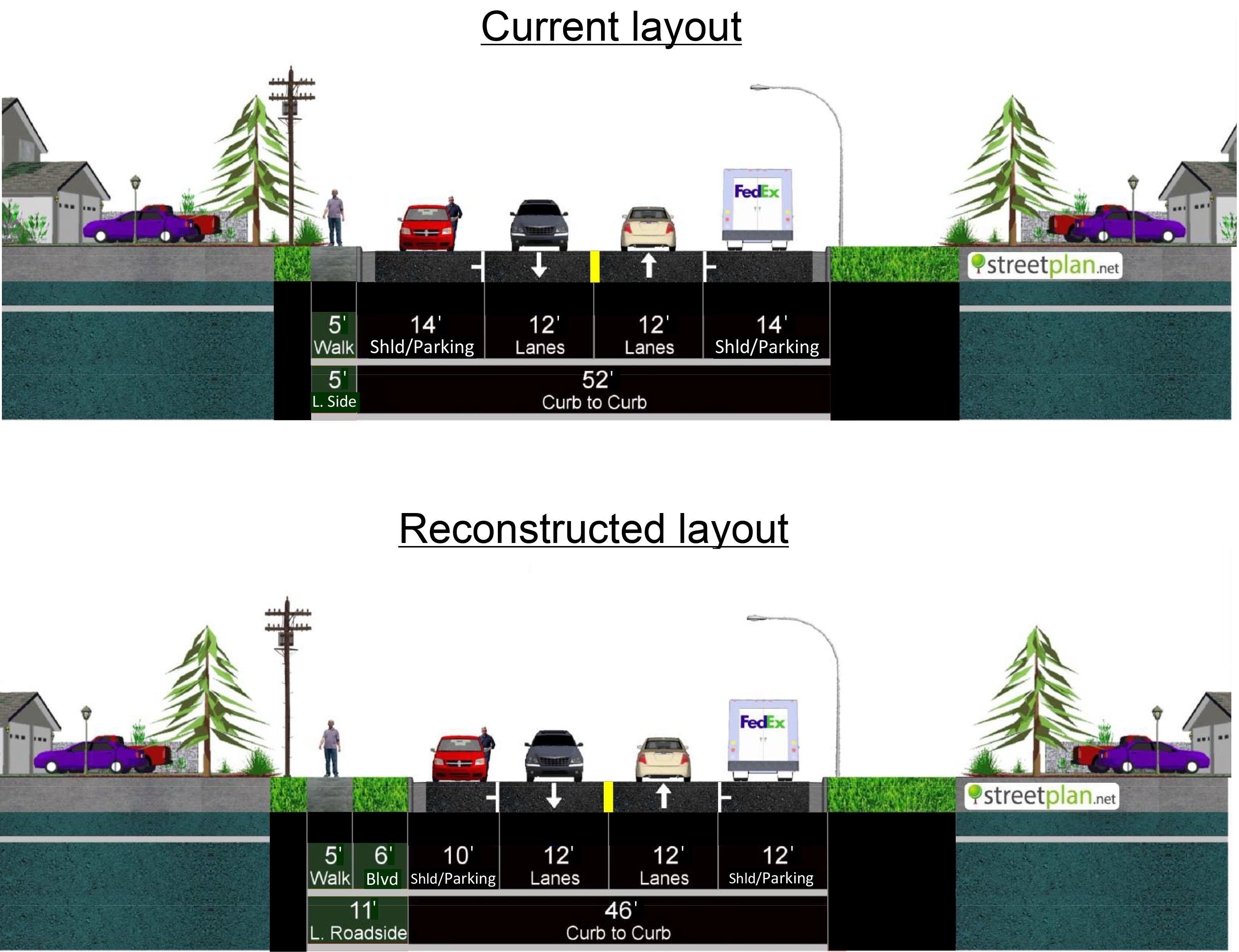

Emerson Avenue to Atlantic Avenue (Hwy 75)

This layout changes by replacing a total of 6 feet of the paved shoulders with a new boulevard space on the westbound lane.

Layout for Emerson Ave to Atlantic Ave on Highway 175

Emerson Avenue to Atlantic Avenue (Hwy 75) layout

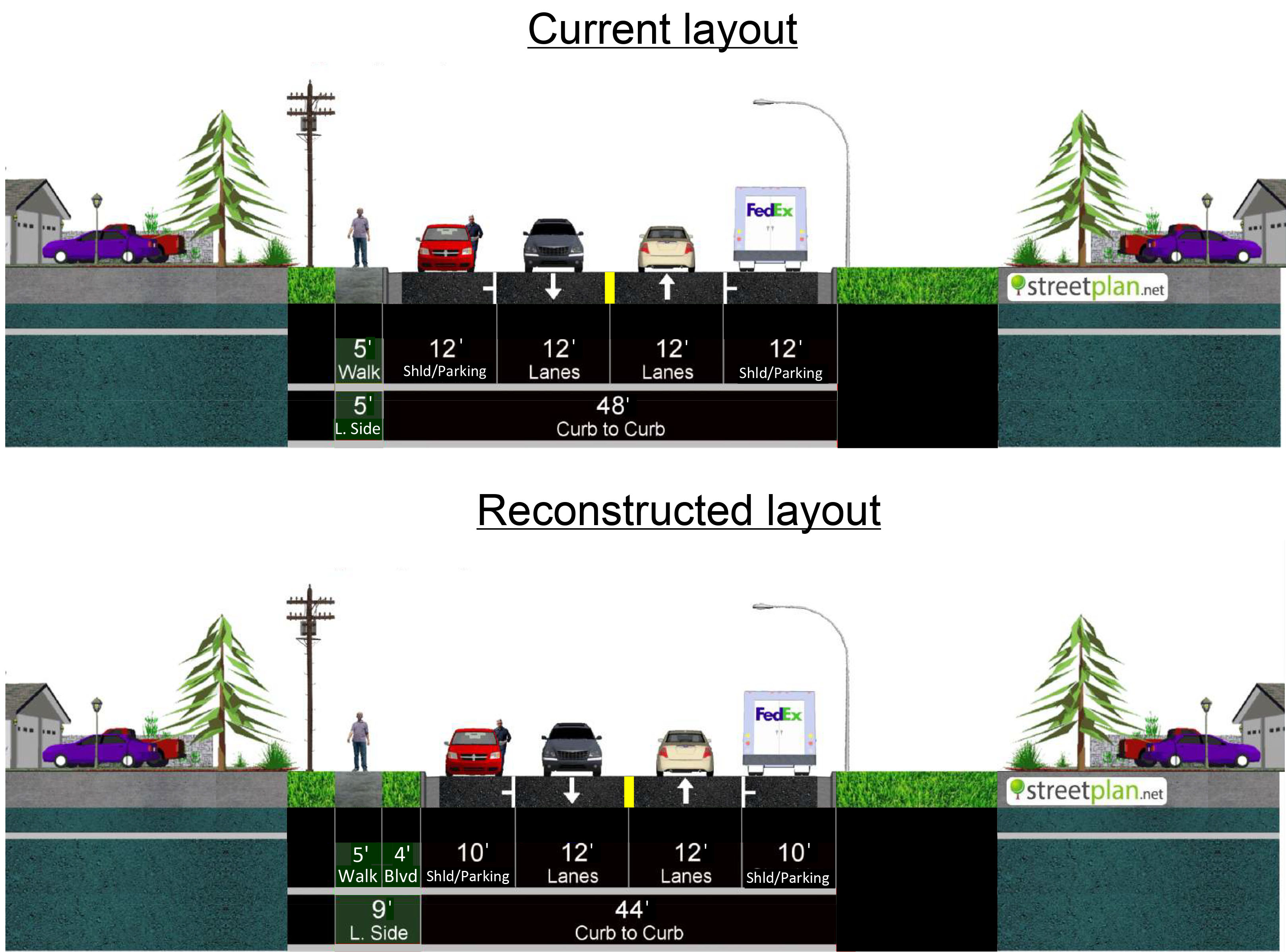

Atlantic Avenue (Hwy 75) to Two Rivers Bridge

This layout changes by replacing a total of 4 feet of the paved shoulders with a new boulevard space on the eastbound lane.

Layout for Atlantic Ave to Two Rivers Bridge on Highway 175

Atlantic Avenue (Hwy 75) to Two Rivers Bridge layout


Curb shift

Although there are a number of considerations when taking a curb shift into account, in this circumstance the amount of pavement space must be reduced and a curb shift must take place.

In order to accommodate the minimum requirements needed to reconstruct sidewalks that meet ADA standards, the sidewalk slope has to be extended into the current pavement layout. A curb shift is the only way to feasibly accommodate that.

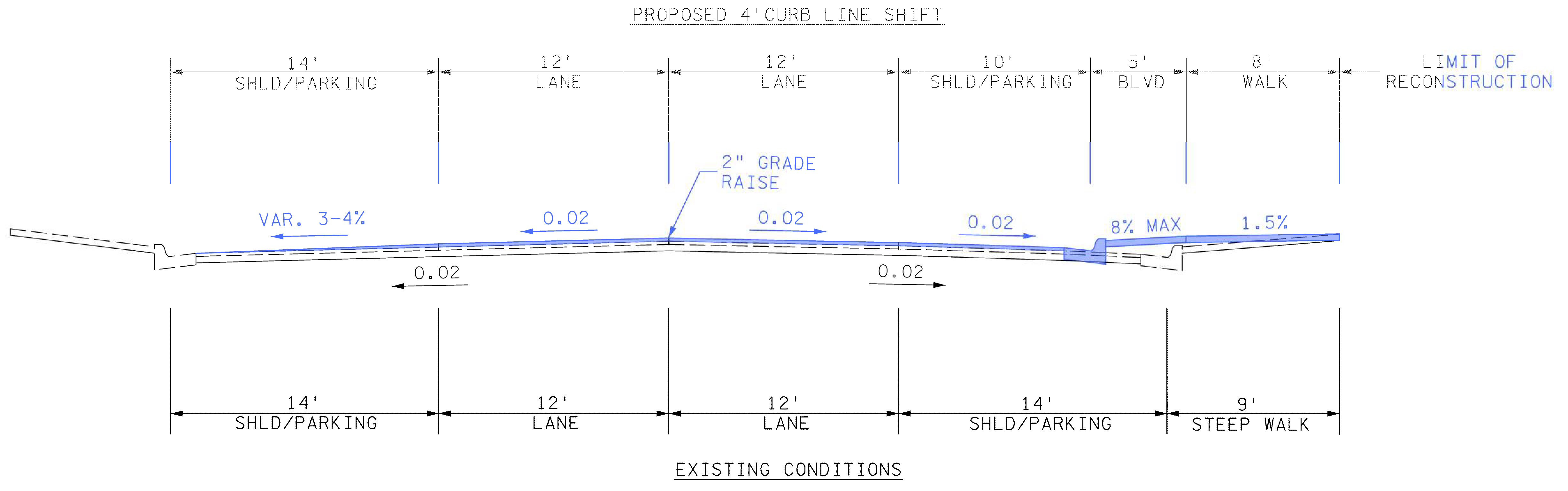

Sideview of what the reconstructed profile would look like. It shows how the new sidewalk has to be moved in on the shoulder to fix the slope of the current sidewalks.

A curb shift is required for this project. This cross section shows how the new slope (in blue) needs to be extended out towards the driving surface.
